Extra Light PVDF Foam Material Supercritical Foaming Sheet For Valves Insulation
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Extra Light PVDF Foam Material Supercritical Foaming Sheet For Valves Insulation | Material: | Lightweight Aviation Interior Foam |
|---|---|---|---|
| Cell Structure: | Non-crosslinked | Color: | White |
| Advantage: | Lame Retardant | Application: | Aircraft Interior Finishing And Structural Parts |
| Highlight: | pvd supercritical foam oem,valves insulation pvdf foam material |
||
Product Description

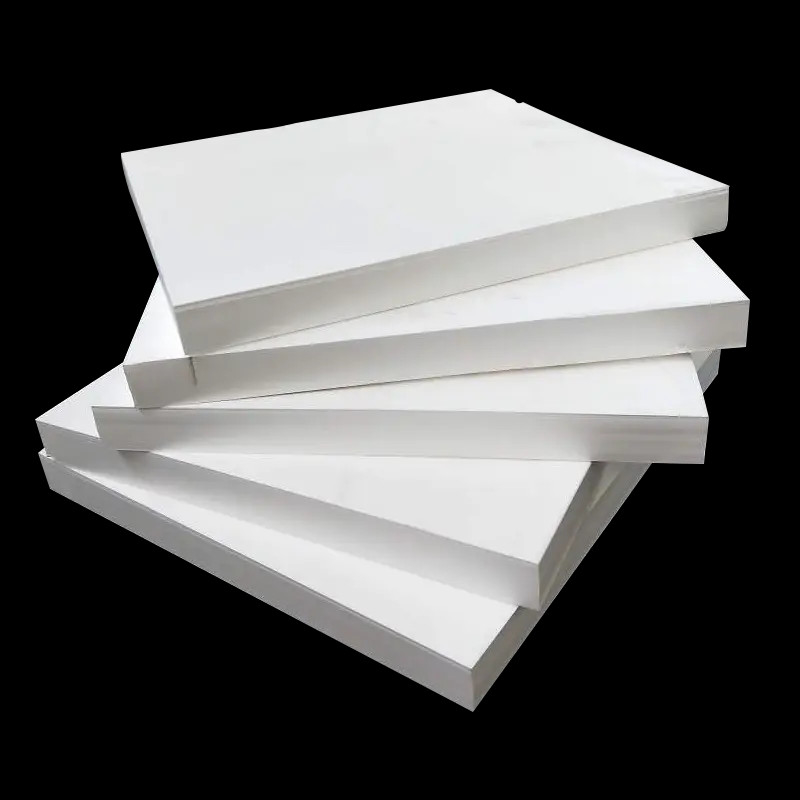

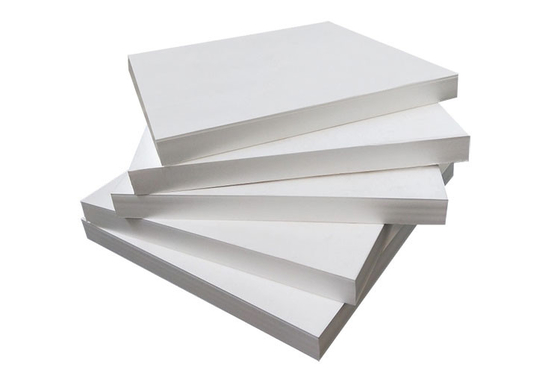

Extra Light PVDF Foam Material Supercritical Foaming Sheet For Valves Insulation
PVDF foam sheet:Tube&Pipe Insulation
It can easily insulate and subsequently reduce energy loss from valves, heat exchangers, filters and reducers, as well as eliminate all condensation associated with cold water, as well as being able to withstand all temperatures, as well as withstand the rigors of ever-increasing temperatures in a given condition.
This material is also extremely resistant to bacterial growth, exceeding the challenges of the industry standard ASTM G21-15.
The advantage of supercritical CO2 foam:
√ All supercritical physical foaming
√ Environmental protection without odor
√ No chemical redisue
√Can be recyclable
√Light,weight,high strength,high elasticity,excellent mechanical properties
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
| Tensile Strength (MPa) |
ISO1798:2008 | MPa | 0.84 |
| Elongation at Break (%) |
ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148 (50% 22h) |
% | 1.47(24h) |
| Method A Tear Trouser Test (N/cm) |
ISO8067:2008 | N/cm | / |
| Method B Tear AngleTest (N/cm) |
ISO8067:2008 | N/cm | 38.75 |
| Ball Resilience (%) |
ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
