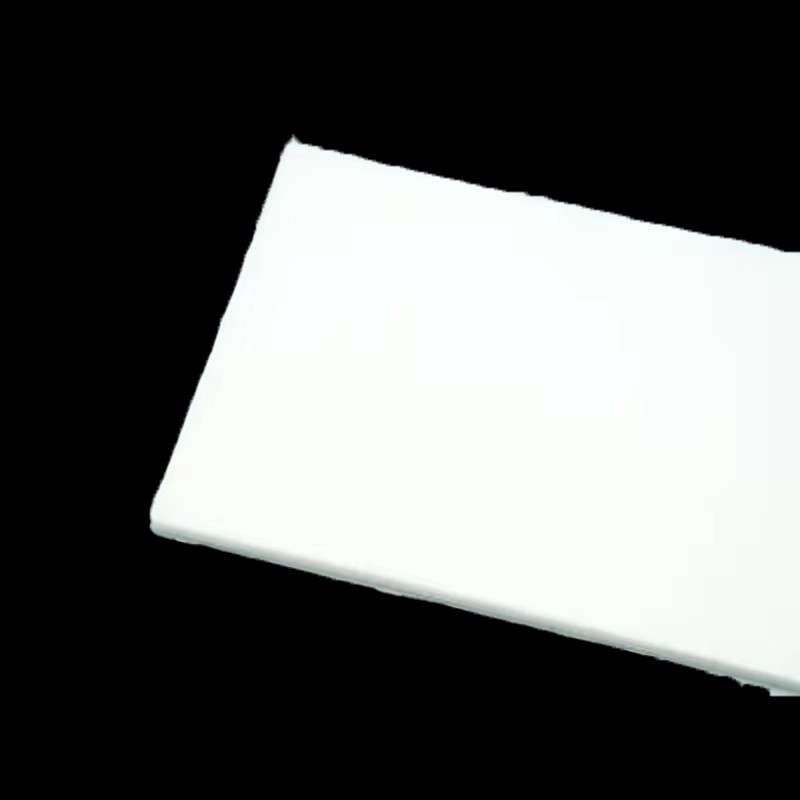

Recyclable PVDF Polymer Foam Material Excellent Toughness For Exchanges Insulation
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Recyclable PVDF Polymer Foam Material Excellent Toughness For Exchanges Insulation | Material: | Lightweight Aviation Interior Foam |
|---|---|---|---|
| Cell Structure: | Non-crosslinked | Color: | White |
| Advantage: | Flame Retardant | Application: | Aviation |
| Highlight: | exchanges insulation pvdf polymer foam,oem pvdf polymer foam |
||
Product Description
Recyclable PVDF Polymer Foam Material Excellent Toughness For Exchanges Insulation
PVDF foam sheet:Tube&Pipe Insulation
It can easily insulate and subsequently reduce energy loss from valves, heat exchangers, filters and reducers, as well as eliminate all condensation associated with cold water, as well as being able to withstand all temperatures, as well as withstand the rigors of ever-increasing temperatures in a given condition.
This material is also extremely resistant to bacterial growth, exceeding the challenges of the industry standard ASTM G21-15.
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,PVDF,TPU and so on
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
| Tensile Strength (MPa) |
ISO1798:2008 | MPa | 0.84 |
| Elongation at Break (%) |
ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148 (50% 22h) |
% | 1.47(24h) |
| Method A Tear Trouser Test (N/cm) |
ISO8067:2008 | N/cm | / |
| Method B Tear AngleTest (N/cm) |
ISO8067:2008 | N/cm | 38.75 |
| Ball Resilience (%) |
ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
