XPE IXPE Foaming Machine PE Foam Mixing Equipment XLPE Internal Mixer Machine
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XPE IXPE Foaming Machine PE Foam Mixing Equipment XLPE Internal Mixer Machine | Machine: | Internal Mixer Machine |
|---|---|---|---|
| Hopper Turning Method: | Tipping Bucket Pressurized | Total Volumeof Mixing: | 75L |
| Usage: | Mixing | Feed Mode: | Front/Rear Feeding |
| Rotor Speed(F/R): | 38/30.5 R/min | Output: | 80kg/h-350kg/h |
| Customization: | Available | Operating Materials: | LDPE AC |
| Highlight: | PE Foam Mixing Equipment,XLPE Internal Mixer Machine,XPE IXPE Foaming Machine |
||
Product Description
XPE IXPE Foaming Machine PE Foam Mixing Equipment XLPE Internal Mixer Machine
XLPE IXPE Foam internal mixer is a tipping bucket pressurized internal mixer with fast production speed, stable temperature control, and uniform mixing. It is suitable for mixing dozens of raw materials such as various rubber, plastics, color masterbatches, etc., and provides a variety of models for customers select.
- Rubber (plastic) and other additives are mixed or plasticized under closed, pressurized and temperature-controlled conditions, with high production efficiency, uniform material dispersion, excellent quality, no pollution to the environment, and convenient material replacement, color change and cleaning.
- The mixing chamber, rotor, pressure weight and other components are all jacketed structures, which can be heated or cooled by medium, steam, heat transfer oil and water to meet various rubber (plastic) refining process requirements, and the processed materials are of excellent and stable quality.
Specifications:
| Model Item | Unit | EKKOFLEX-75L |
Total Mixing Capacity | L | 75 |
Drive Motor Power | KW | 110 |
Flip Motor Power | KW | 4 |
Flip Angle | . | 140 |
Cooling Water Pressure | Mpa | 0.3-0.4 |
Compressed Air Pressure | Mpa | 0.5-0.8 |
Rotor Speed(F/R) | r/min | 38/30.5 |
Output | Kg/h | 80-350 |
Detailed Photos:

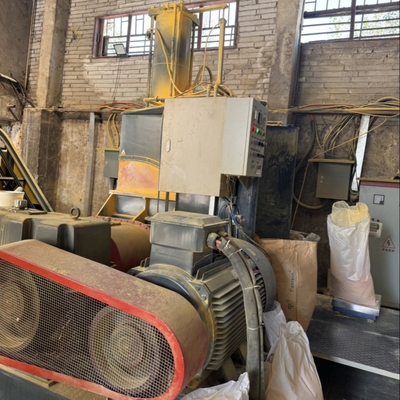

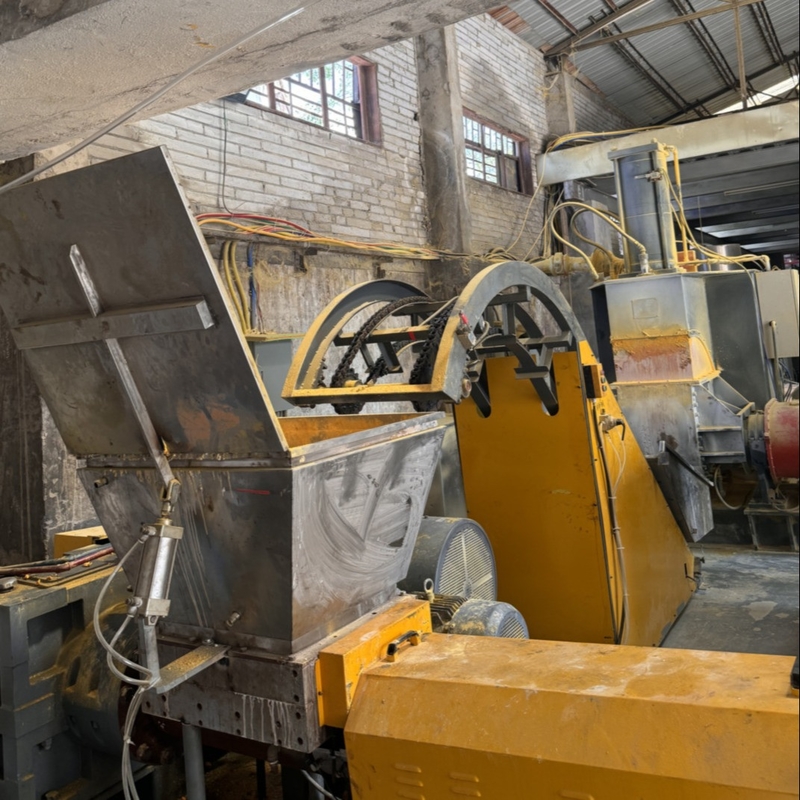

Internal Mixing Unit
FAQ:
Q1:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, there are vulnerable parts. We provide you enough quantity of spare parts, these spare parts will ship to you with machines together.
Q4:Could you customize the plastic foaming machine?
Yes, Of course.
