XPE IXPE PE EVA Foam Internal Mixer Cross-Linked Foam Machine Granulation Machine
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XPE IXPE PE EVA Internal Mixer Cross-Linked Foam Machine Granulation Machine | Machine: | Internal Mixer Machine |
|---|---|---|---|
| Suitable Material: | XPE Foam Pellet | Total Volumeof Mixing: | 75L |
| Usage: | Mixing | Feed Mode: | Front/Rear Feeding |
| Rotor Speed(F/R): | 38/30.5 R/min | Output: | 80kg/h-350kg/h |
| Customization: | Available | Machine Type: | Foaming Machine |
| Highlight: | EVA Foam Internal Mixer,XPE Foam Internal Mixer,PE Foam Internal Mixer |
||
Product Description
XPE IXPE PE EVA Internal Mixer Cross-Linked Foam Machine Granulation Machine
XPE Foam Internal Mixer can be used for mixing and mixing of rubber, plastic and chemical raw materials. It is suitable for XPE IXPE cross-linked foaming raw materials, shoe materials, tires, seals, conveyor belts and other rubber and plastic industries.
The internal mixer chamber adopts heated by steam or heat-conducting oil, the heating speed is fast and the heat preservation performance is good.
Collect temperature, pressure and time signals, through PLC integrated control, realize constant temperature and automatically complete banburying.
- The turning machine adopts TOP, which has high transmission efficiency, large load-bearing capacity, and can realize non-stop unloading, eliminating the frequent starting of the motor, greatly extending its service life.
- The electric control system adopts PLC device, which has complete and reliable automatic control monitoring, alarm and other functions and necessary interlocking protection.
- The machine is sturdy and durable, with low failure rate, easy installation, operation and maintenance, and saves electricity.
| Model Item | Unit | EKKOFLEX-75L |
Total Mixing Capacity | L | 75 |
Drive Motor Power | KW | 110 |
Flip Motor Power | KW | 4 |
Flip Angle | . | 140 |
Cooling Water Pressure | Mpa | 0.3-0.4 |
Compressed Air Pressure | Mpa | 0.5-0.8 |
Rotor Speed(F/R) | r/min | 38/30.5 |
Output | Kg/h | 80-350 |
Detailed Photos:

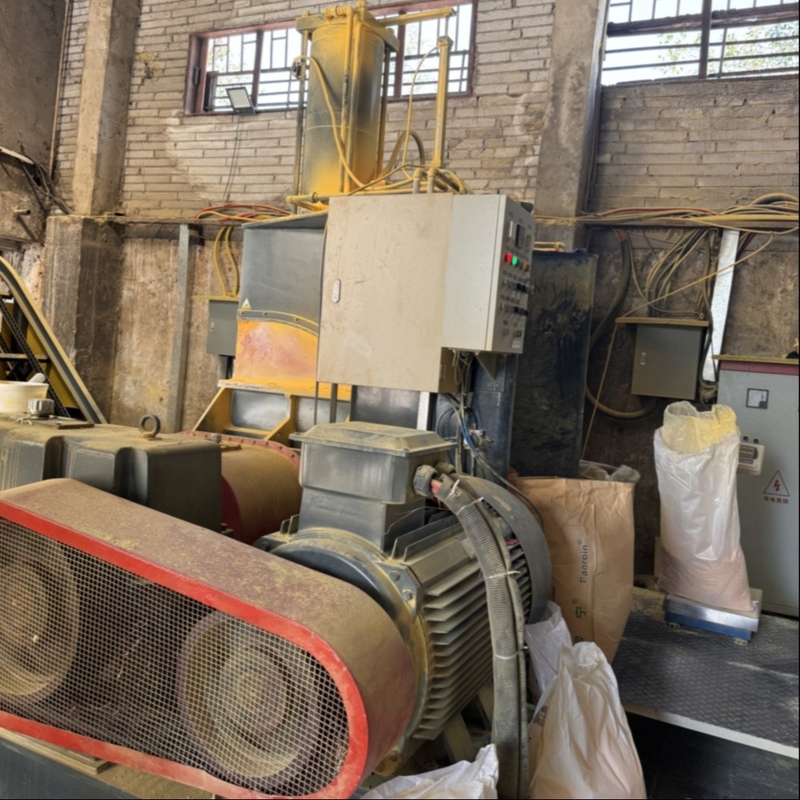

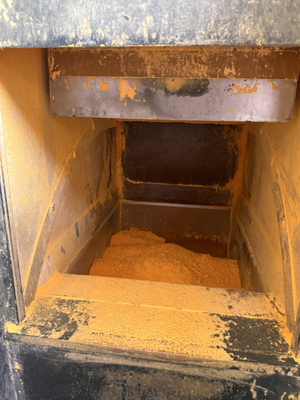

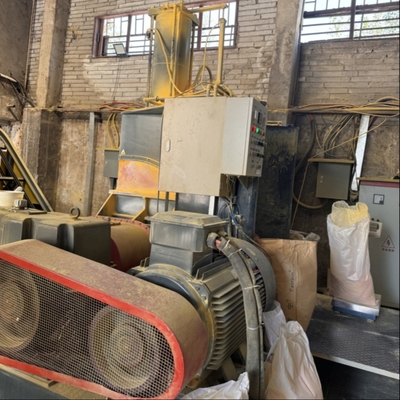

Internal Mixing Unit
FAQ:
Q1:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, there are vulnerable parts. We provide you enough quantity of spare parts, these spare parts will ship to you with machines together.
Q4:Could you customize the plastic foaming machine?
Yes, Of course.
