Crosslinked Foam Granulation Machine Internal Mixer Machine For XPE IXPE PE Foam
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | Crosslinked Foam Granulation Machine Internal Mixer Machine For XPE IXPE PE Foam | Machine: | Internal Mixer Machine |
|---|---|---|---|
| Suitable Material: | XPE Foam Pellet | Hopper Turning Method: | Tipping Bucket Pressurized |
| Usage: | Mixing | Total Volumeof Mixing: | 75L |
| Compressed Air Pressure: | 0.5-0.8Mpa | Flip Angle: | 140 |
| Customization: | Available | Application: | XPE Foam Products Produce |
| Highlight: | PE Foam Granulation Machine,Internal Mixer Granulation Machine,XPE Foam Granulation Machine |
||
Product Description
Crosslinked Foam Granulation Machine Internal Mixer Machine For XPE IXPE PE Foam
XLPE Foam Intermal Mixer can be used for mixing and mixing of rubber, plastic and chemical raw materials. It is suitable for XPE IXPE cross-linked foaming raw materials, shoe materials, tires, seals, conveyor belts and other rubber and plastic industries.
The internal mixer chamber adopts heated by steam or heat-conducting oil, the heating speed is fast and the heat preservation performance is good.
Collect temperature, pressure and time signals, through PLC integrated control, realize constant temperature and automatically complete banburying.
- The mixing chamber, rotor, pressure weight and other components are all jacketed, which can be heated or cooled by medium, steam, heat transfer oil and water to meet various rubber (plastic) refining process requirements. The quality of processed materials is excellent and stable.
- The spiral angle and working length of the rotor ridges are reasonably designed to achieve the best kneading effect. The rotor ridges and end faces are cladding wear-resistant hard alloy. The surfaces of the mixing chamber, rotor and pressure weight that are in direct contact with the materials are all stainless steel, which are polished, bright, wear-resistant and corrosion-resistant.
| Model Item | Unit | EKKOFLEX-75L |
Total Mixing Capacity | L | 75 |
Drive Motor Power | KW | 110 |
Flip Motor Power | KW | 4 |
Flip Angle | . | 140 |
Cooling Water Pressure | Mpa | 0.3-0.4 |
Compressed Air Pressure | Mpa | 0.5-0.8 |
Rotor Speed(F/R) | r/min | 38/30.5 |
Output | Kg/h | 80-350 |
Detailed Photos:

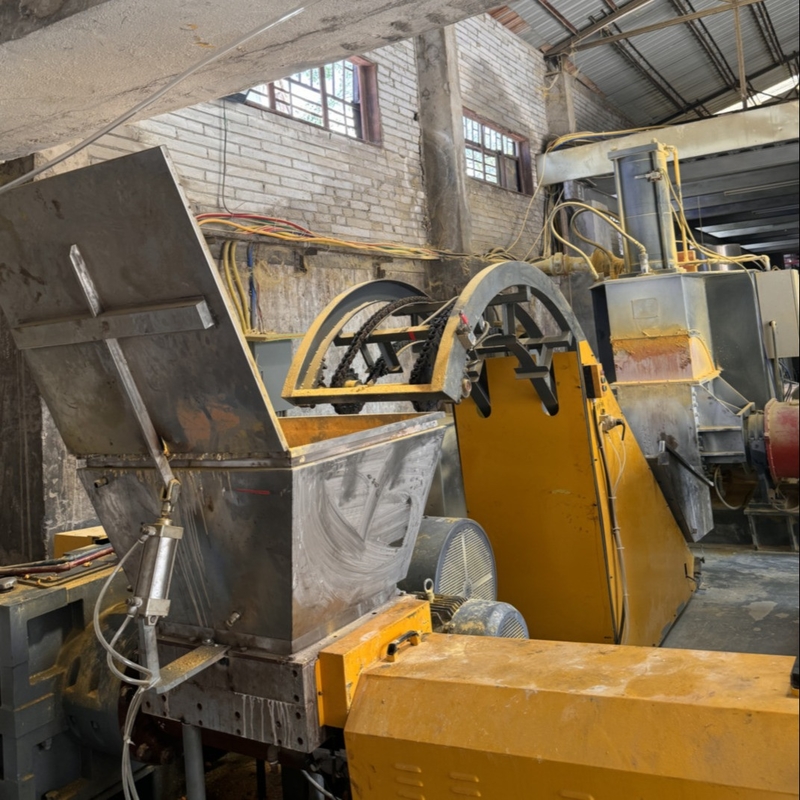

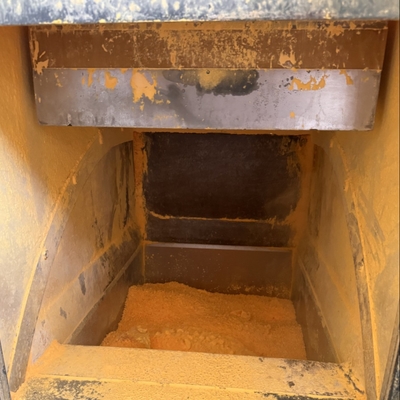

Internal Mixing Unit
FAQ:
Q1:What plastic foaming machines could you provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
Q4:Can you train a new XPE / IXPE enterprises?
Yes, Of course.
