PE Foam Plastic Granulating Machine Foaming Pelletizer For XLPE XPE Foam
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | PE Foam Plastic Granulating Machine Foaming Pelletizer For XLPE XPE Foam | Machine: | Single-screw Extrusion Granulation Machine |
|---|---|---|---|
| Motor Power: | 2.2KW | Screw: | Single-Screw |
| Machine Type: | XPE/IXPE Foaming Machine | Extruder Specifications: | 150# |
| Yield: | 80-380Kg/h | Mixer Machine: | 75L |
| Highlight: | XPE Foam Plastic Granulating Machine,XLPE Foam Plastic Granulating Machine,PE Foam Plastic Granulating Machine |
||
Product Description
PE Foam Plastic Granulating Machine Foaming Pelletizer For XLPE XPE Foam
Single--Screw Extrusion Granulation Unit Set composed of an internal mixer, automatic lifting machine,double feeder, a single screw extruder, an eccentric eager cutting machine, a cooling pellet feeding system, a vibrating pelletizer, and a temporary storage bin. The main barrel of the extruder adopts electric heating, and water cooling automatically controls the barrel temperature; the screw core can be cooled by water (oil) to control the screw temperature to prevent the master batch from decomposing or reacting during the extrusion process; the head is equipped with a test The pressure sensor of melting temperature and pressure is convenient for judging the extrusion state. The eccentric die surface hot cutting, granulation auxiliary machine, and rotating blade are driven by AC motor, frequency conversion speed regulation; the cooling pellet system is composed of primary and secondary cooling barrels, vibrating screens, wind-blown storage bins, etc. The unit has the advantages of large output, low failure rate, uniform cutting and so on.
Specification:
Extruder | Unit | EKKOFLEX-150 |
Screw Diameter | mm | 150 |
L/D Aspect Ratio |
| 12:1 |
Motor Speed | rpm | 1480 |
Main Motor Power | KW | 45 |
Material |
| 38CrMoALA |

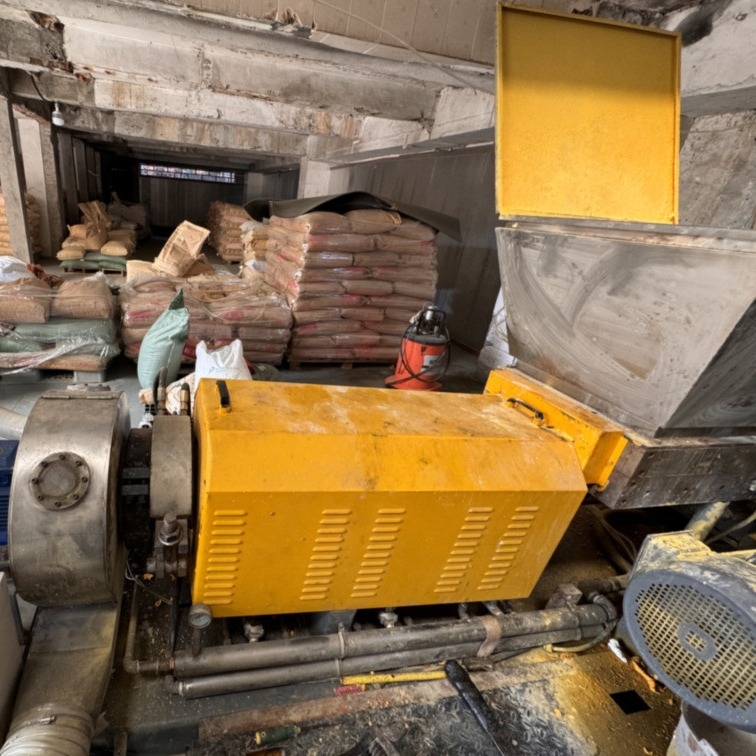

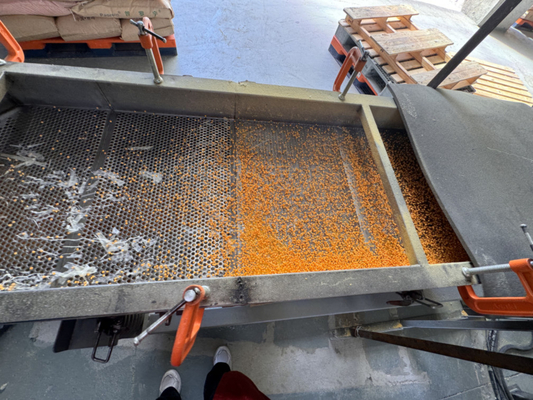

Detailed Photos:
Single-screw extrusion granulation unit is mainly suitable for XPE/IXPE master batch banburying and granulation processing.
The production process of the granulation unit is:
75L internal mixer machine---Automatic lifting machine---double feeder--- single screw extruder---Eccentric hot cutting machine--
Cyclone Separator-- Vibration Sieve-- Material Collection
Internal Mixting Unit Hoist Unit Single-screw Extrusion
Granulation Unit
Secondary Cooling and Temporary Storage
FAQ:
Q1:What plastic foaming machines could you provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
Q4:Can you train a new XPE / IXPE enterprises?
Yes, Of course.
