Air Cooling Die Face Pelletizing Machine For Extruder Granulation Production Line
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | Air Cooling Die Face Pelletizing Machine For Extruder Granulation Production Line | Machine: | Single-screw Extrusion Granulation Machine |
|---|---|---|---|
| Customization: | Available | Screw: | Single-Screw |
| L/D Of Extruder: | 12/1 | Extruder Specifications: | 150# |
| Cooling Mode: | Air Cooling | Heating Method: | Single Screw Return Water Heating |
| Highlight: | Die Face Pelletizing Machine,Air Cooling Pelletizing Machine |
||
Product Description
Air Cooling Die Face Pelletizing Machine For Extruder Granulation Production Line
Single-screw extrusion granulation unit is mainly suitable for XPE/IXPE master batch banburying and granulation processing.
The production process of the granulation unit is:
75L internal mixer machine---Automatic lifting machine---double feeder--- single screw extruder---Eccentric hot cutting machine--

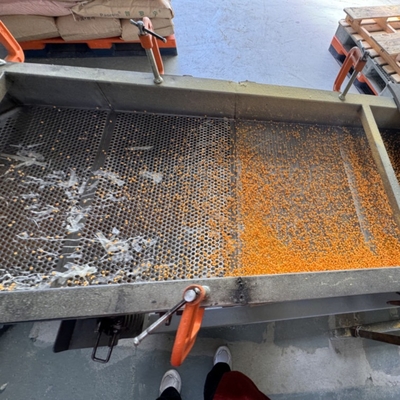

Cyclone Separator-- Vibration Sieve-- Material Collection
Specification:
|
Extruder |
Unit |
EKKOFLEX-150 |
|
Screw Diameter |
mm |
150 |
|
L/D Aspect Ratio |
|
12:1 |
|
Motor Speed |
rpm |
1480 |
|
Main Motor Power |
KW |
45 |
|
Material |
|
38CrMoALA |
Detailed Photos:

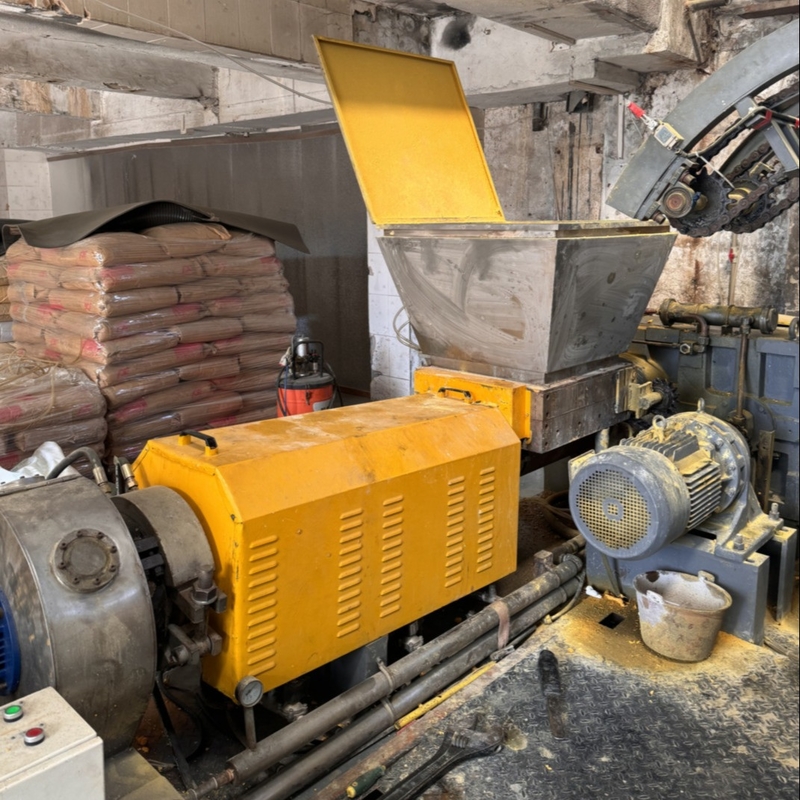

Internal Mixting Unit Hoist Unit Single-screw Extrusion
Granulation Unit
Secondary Cooling and Temporary Storage
FAQ:
Q1:What plastic foaming machines could you provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is the guarantee period of the machines? When does it start?
The guarantee period of our equipment is one year, calculated the date from when it leaves the factory. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.
Q4:Can you train a new XPE / IXPE enterprises?
Yes, Of course.
