Mixer Single Screw Plastic Pelletizing Machine IXPE Crosslinkedb PE Granulation Machine
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | Mixer Single Screw Pelletizing Machine IXPE Crosslinkedb PE Granulation Machine | Machine: | Single-screw Extrusion Granulation Machine |
|---|---|---|---|
| Customization: | Available | Screw: | Single-Screw |
| L/D Of Extruder: | 12/1 | Extruder Specifications: | 150# |
| Machine Type: | XPE/IXPE Foaming Machine | Motor Power: | 2.2KW |
| Highlight: | plastic pelletizing machine for sale,IXPE Crosslinkedb PE Granulation Machine,IXPE Crosslinkedb PE Pelletizing Machine |
||
Product Description
Mixer Single Screw Pelletizing Machine IXPE Crosslinkedb PE Granulation Machine
Granulation Steps:
Determine the granulation formula according to the product requirements → weigh the PE and additives separately according to the granulation formula ratio → mix them in the internal mixer according to the feeding sequence and mixing time required by the process → put the mixed material into the hopper of the granulation machine and extrude according to the required extrusion process parameters and process flow → cut the particles on the air-cooled mold surface, cool the two-stage cyclone cylinder → screen and further cool the vibrating screen → enter the storage cylinder → weigh → pack.
Specification:
Extruder | Unit | EKKOFLEX-150 |
Screw Diameter | mm | 150 |
L/D Aspect Ratio |
| 12:1 |
Motor Speed | rpm | 1480 |
Main Motor Power | KW | 45 |
Material |
| 38CrMoALA |

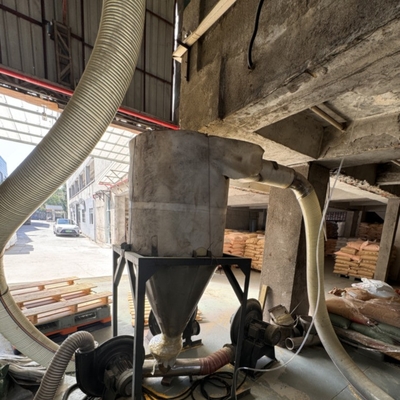

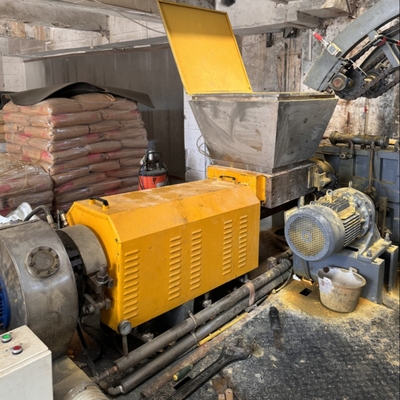

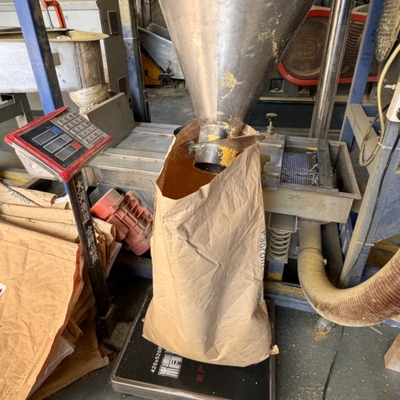

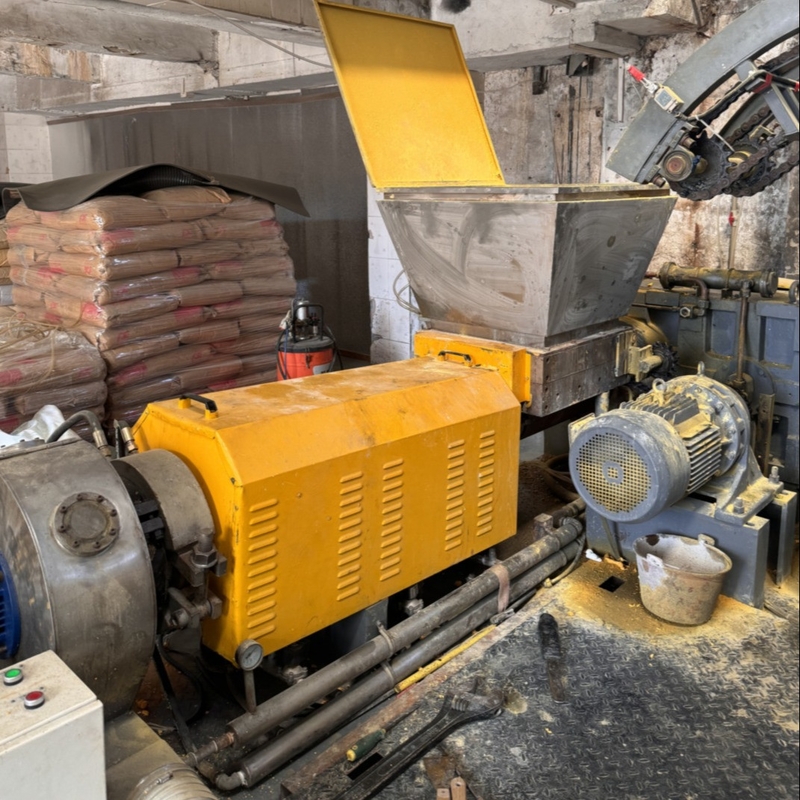

Detailed Photos:
Internal Mixting Unit Hoist Unit Single-screw Extrusion
Granulation Unit
Secondary Cooling and Temporary Storage
FAQ:
Q1:What plastic foaming machines could you provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q4:Can you train a new XPE / IXPE enterprises?
Yes, Of course.
Q5:Could you customize the plastic foaming machine?
Yes, Of course
Q6:How long is the guarantee period of the machines? When does it start?
The guarantee period of our equipment is one year, calculated the date from when it leaves the factory. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.
Q7:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
