XPE Sheet Foam Extruder Machine IXPE Crosslinked Foam Extrusion Machine
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XPE Sheet Foam Extruder Machine IXPE Crosslinked Foam Extrusion Machine | Screw Design: | Single-screw |
|---|---|---|---|
| Screw L/D Ratio: | 30:1 | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 170mm | Screw Speed (rpm): | 1480 |
| Dimension(mm): | 4600*2000*1600 | Type: | XLPE Foam Machine |
| Highlight: | XPE Sheet Foam Extruder Machine,Crosslinked Foam Extrusion Machine,IXPE Sheet Foam Extruder Machine |
||
Product Description
XPE Sheet Foam Extruder Machine IXPE Crosslinked Foam Extrusion Machine
The IXPE sheet extrusion line is a master sheet production line for processing IXPE (or XPE), which can be used to process low-density polyethylene, foaming agent, crosslinking agent and other sheet extrusion. The width of the sheet is 300~800mm, and the thickness is 0.1-3mm. The extruded product is uniform and natural, and the surface is smooth. The extruder unit has large extrusion capacity, simple operation and convenient maintenance
Specification:
|
Extruder |
Unit |
170/30 |
|
Screw Diameter |
mm |
170 |
|
L/D Screwt Ratio |
|
30:1 |
|
Screw Speed |
rpm |
1480 |
|
Motor Power |
KW |
200 |
|
Mattrix Thickness Range |
mm |
0.8-4 |
|
Capacity |
KG |
80-260 |
|
Dimension |
mm |
4600*2000*1600 |
|
Temperature measurement point |
Zone |
16 |
Detailed Photos:

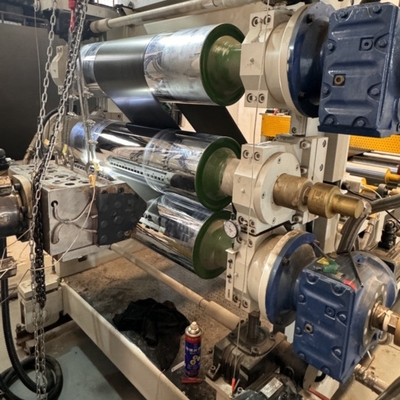

(1) Three Roll/Two Roll Extrusion Machine Sets:
Extruder Host → Three Roll Calender → Trimming Unit → Winding Unit

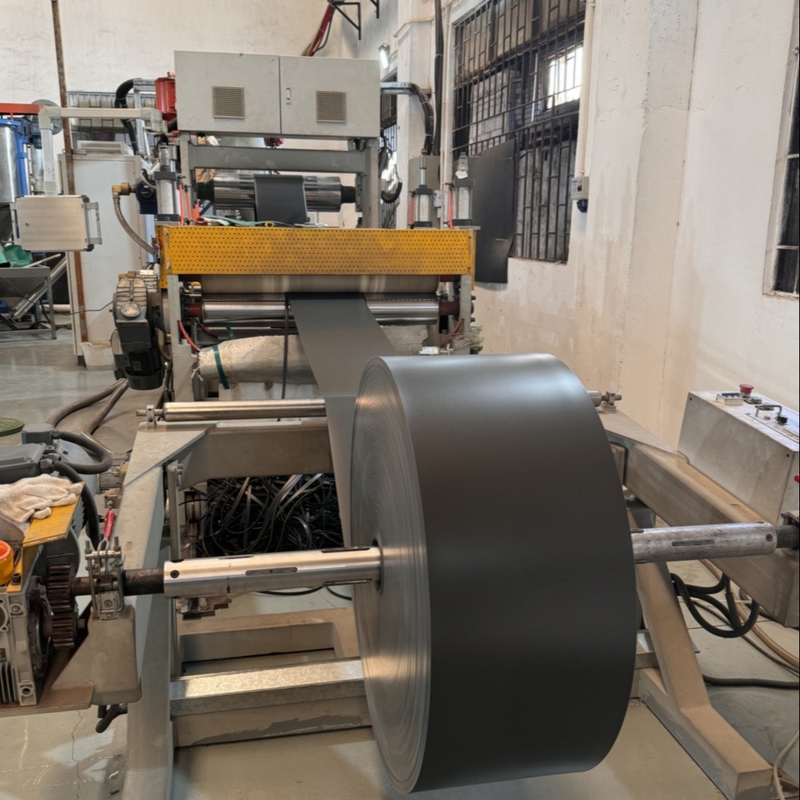

(2) Water Cooling Extrusion Machine Sets:
Extruder Host → Water Cooling Tank → Trimming Unit → Winding Unit
FAQ:
Q1:What plastic foaming machines could you provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q4:Can you train a new XPE / IXPE enterprises?
Yes, Of course.
Q5:Could you customize the plastic foaming machine?
Yes, Of course
Q6:How long is the guarantee period of the machines? When does it start?
The guarantee period of our equipment is one year, calculated the date from when it leaves the factory. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.
Q7:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
