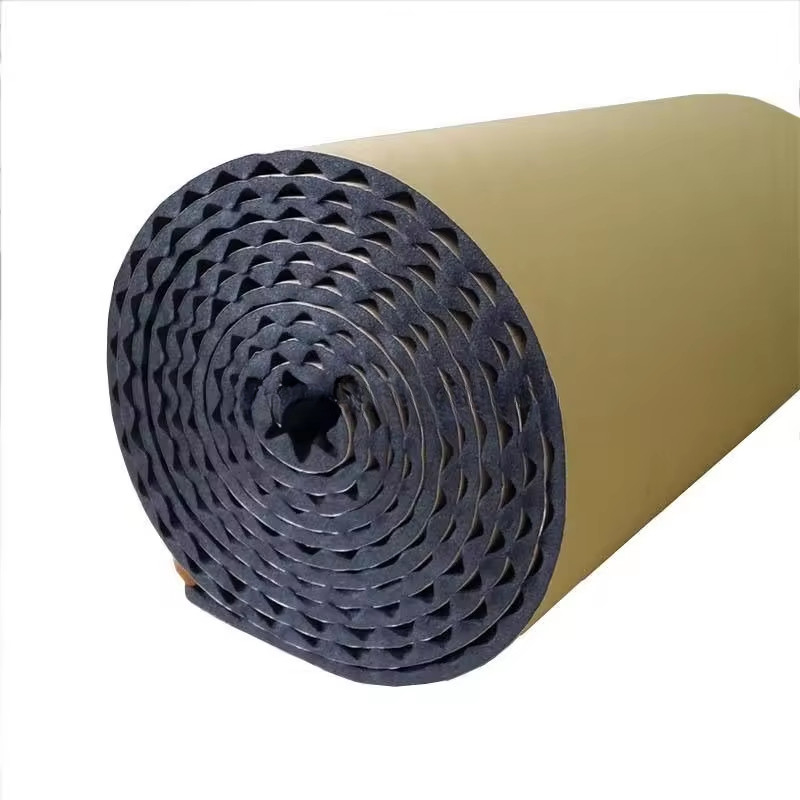

Chemical Resistance Self Adhesive EPDM Foam Seal For Sealing Doors And Windows
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Chemical Resistance Self Adhesive EPDM Foam Seal For Sealing Doors And Windows | Material: | Ethylene-Propylene-Diene Monome |
|---|---|---|---|
| Cell Structure: | Close Cell EPDM Foam And Open Cell EPDM Foam | Density(Open Cell): | 95-100kg/m³ |
| Density (Closed Cell): | 110-150kg/m³ | Feature: | High Elastic Buffer, Temperature Resistance, Flame Resistance |
| Application: | Household Machine; Seal For Electronic Equipment | Color: | Black |
| Thickness: | 1-50mm | Max Size: | 1000*2000*50mm |
| Highlight: | EPDM foam seal for doors,self-adhesive EPDM window seal,chemical resistant EPDM rubber foam |
||
Product Description
Chemical Resistance Self Adhesive EPDM Foam Seal For Sealing Doors And Windows
Surface treatments on EPDM foam can significantly improve its adhesion, waterproofness, and aesthetics.
1.Untreated surfaces: Typically used for applications requiring less stringent surface requirements, such as sealing gaskets and shock absorbers within electronic equipment. Untreated surfaces offer lower costs, but adhesion and waterproofness do vary.
Adhesive-backed foam: Adhesive is applied to the back of the foam for easy attachment to the surface of the device. Adhesive-backed EPDM foam can eliminate the need for sealing the bezel or display of electronic equipment, simplifying the installation process and improving production efficiency.
2.Coating: Special coatings (such as waterproof or conductive coatings) are applied to the foam surface to enhance its waterproofness or conductivity. Coated EPDM foam is suitable for applications requiring high waterproofness or electromagnetic shielding, such as outdoor electronic device seals and electromagnetic shielding gaskets.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q2:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q3:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
