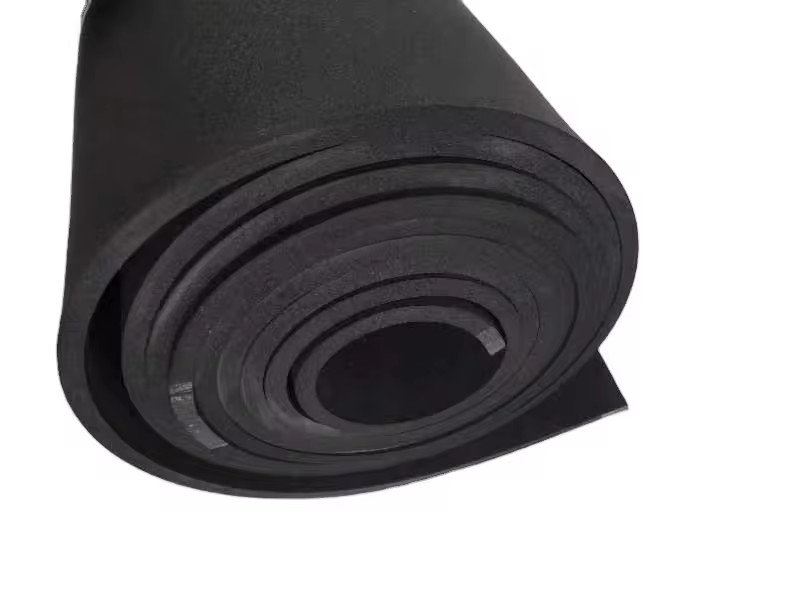

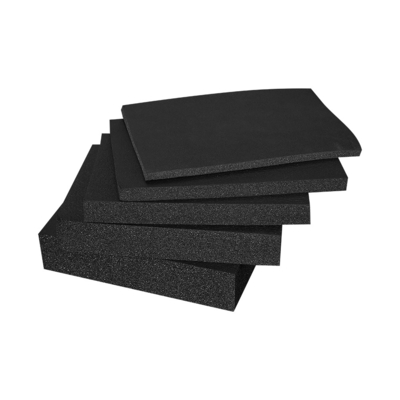

1-1.5m Width Sound Vibration Absorption EPDM Closed Cell Sponge Rubber
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 1-1.5m Width Sound Vibration Absorption EPDM Closed Cell Sponge Rubber | Material: | Ethylene-Propylene-Diene Monome |
|---|---|---|---|
| Cell Structure: | Close Cell EPDM Foam And Open Cell EPDM Foam | Density(Open Cell): | 95-100kg/m³ |
| Density (Closed Cell): | 110-150kg/m³ | Feature: | High Elastic Buffer, Temperature Resistance, Flame Resistance |
| Application: | Household Machine; Seal For Electronic Equipment | Color: | Black |
| Thickness: | 1-50mm | Max Size: | 1000*2000*50mm |
| Highlight: | 1-1.5m EPDM closed cell sponge rubber,sound vibration absorption EPDM foam,EPDM rubber foam with warranty |
||
Product Description
1-1.5m Width Sound Vibration Absorption EPDM Closed Cell Sponge Rubber
Thickness is another important factor affecting the performance of EPDM foam, and foams of different thicknesses are suitable for different applications.
- Thin EPDM foam (0.5-2mm): Commonly used in applications requiring precise sealing, such as sealing seams around electronic components and display bezels. Thin foam offers excellent flexibility and conformability, enabling effective sealing in small gaps.
- Medium EPDM foam (2-5mm): Suitable for modular sealing and battery compartment sealing in electronic devices. While providing good sealing, medium-density foam can absorb vibration and shock to protect internal components.
Thick EPDM foam (5mm and above): Mainly used in applications requiring high compression and cushioning performance, such as shock-absorbing pads for electronic equipment casings and waterproof seals for large equipment. Thick foam effectively absorbs impact energy and prevents equipment damage.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
