Waterproof IXPP Packaging Foam Closed Cell PP Foam Sheet 1-6mm For Electronics
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Square Meters |
|---|---|
| Price: | USD 0.8-3.5 / Square Meter |
| Packaging Details: | PE film wrapped rolls with protective end caps |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 200000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Structure: | Independent Closed Cell (closed-cell Rate >98%) |
|---|---|---|---|
| Water Absorption: | ≤2% (low Ratio Grades) | Foam Ratio: | 5-30 Times |
| Density Range: | 33.3-200 Kg/m³ | Thickness: | 1-6mm (single Layer), Up To 100mm (multilayer Max) |
| Roll Width: | 500-1500mm (custom Available) | Thermal Conductivity: | <0.036 W/m·K |
| Maximum Service Temperature: | 120°C | Color: | Flesh Color, Black (color Customization Supported) |
| Highlight: | Waterproof Electronics Packaging Foam,Shock Absorbing Protective Packaging,Closed Cell Moisture Barrier Foam |
||
Product Description
Waterproof IXPP Packaging Foam for Electronics Protection
EKKOFLEX's IXPP (Irradiation Cross-Linked Polypropylene) foam is a waterproof closed cell packaging foam engineered for the protection of electronics and precision instruments. Manufactured from polypropylene through melt mixing and extrusion molding, followed by green ion radiation cross-linking and continuous high-temperature foaming, the material forms an independent closed-cell structure with a closed-cell rate of over 98%.
This unique structure gives IXPP foam outstanding waterproofness and moisture resistance while delivering excellent shock absorption, cushioning, and rebound performance. With low odor and minimal VOC emissions, it is safe for direct contact with sensitive electronic components, making it the ideal protective packaging material for consumer electronics, industrial equipment, and precision instruments in domestic and export logistics.

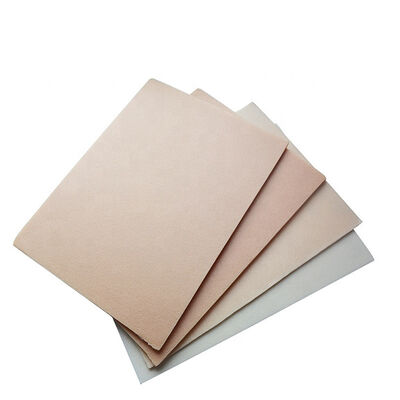

Product Photos
EKKOFLEX IXPP foam product photos: closed cell foam sheet and roll forms with fine surface quality, suitable for electronics packaging and cushioning applications.
 |
|
Key Features
- Waterproof & Moisture Barrier - Closed-cell rate over 98% with water absorption as low as ≤2%, keeping electronics dry during transit, warehousing, and outdoor storage.
- Superior Shock Absorption - Excellent cushioning, resilience, and impact resistance protect delicate electronic components from drops, vibration, and impact during handling and shipping.
- Lightweight & High Strength - Density as low as 33.3 kg/m³ with high strength-to-weight ratio reduces shipping weight and packaging costs.
- Low Odor & Low VOC - Environmentally friendly and harmless with minimal VOC emissions, safe for direct contact with electronic components and consumer products.
- Excellent Chemical Resistance - Better chemical resistance than other foam materials, protecting electronics from corrosion and contamination.
- Thermal Insulation - Low thermal conductivity (<0.036 W/m·K) provides a protective buffer against temperature fluctuations during transport.
- Superior Processing Performance - Can be die-cut, compounded, thermoformed, and vacuum-formed into custom inserts, trays, corner protectors, and cushioning pads.
Technical Specifications
General Specifications
| Item | Specification |
| Foam Ratio | 5-30 Times |
| Thickness | 1-6mm (single layer), up to 100mm (multilayer max) |
| Width | 500-1500mm |
| Color | Flesh color, black (color customization supported) |
IXPP Foam Technical Specification (by foam ratio)
| Test Item | Index | 5 Times | 10 Times | 15 Times | 18 Times | 20 Times | 25 Times | 30 Times | Test Standard |
|---|---|---|---|---|---|---|---|---|---|
| Density (kg/m³) | - | 200±25 | 100±10 | 66±7 | 55±5 | 50±5 | 40±5 | 33.3±3 | GB/T6343 |
| (Higher ratio = lower density, softer feel) | |||||||||
| Tensile Strength (MPa) | Transverse | ≥2.5 | ≥1 | ≥0.9 | ≥0.7 | ≥0.6 | ≥0.4 | ≥0.2 | GB/T6344 |
| Longitudinal | ≥3.5 | ≥1.5 | ≥1.2 | ≥1 | ≥0.9 | ≥0.7 | ≥0.3 | ||
| Elongation (%) | Transverse | ≥260 | ≥240 | ≥200 | ≥190 | ≥180 | ≥160 | ≥100 | GB/T6344 |
| Longitudinal | ≥320 | ≥270 | ≥260 | ≥230 | ≥220 | ≥210 | ≥200 | ||
| Tearing Strength (kN/m) | Transverse | ≥15 | ≥8 | ≥8 | ≥7 | ≥6 | ≥4 | ≥2 | QB/T1130 |
| Longitudinal | ≥18 | ≥9 | ≥9 | ≥8 | ≥7 | ≥5 | ≥3 | ||
| Size Change Rate (%, 120°C, 1h) | Transverse | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | GB/T8811 |
| Longitudinal | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ||
| Water Absorption (%) | - | ≤2 | ≤4 | ≤4 | ≤4 | ≤4 | ≤5 | ≤5 | GB/T1034 |
Packaging Performance Comparison
| Property | IXPP Foam | XPE Foam | IXPE Foam | EPE Foam | EVA Foam |
|---|---|---|---|---|---|
| Waterproofness | Excellent | Good | Good | Fair | Fair |
| Shock Absorption | Excellent | Good | Good | Fair | Fair |
| Resilience / Rebound | Excellent | Good | Good | Poor | Good |
| Compression Set Resistance | Excellent | Good | Good | Poor | Fair |
| Odor / VOC Emission | Very Low | Low | Low | Low | Moderate |
| High-Temperature Stability | Excellent | Good | Good | Poor | Fair |
IXPP foam combines waterproofness, shock absorption, and low outgassing in one material, making it the preferred protective packaging for high-value electronics.
Applications
- Consumer Electronics Packaging
- PCB & Circuit Board Protection
- Precision Instrument Cases
- Medical Device Packaging
- Automotive Electronics Protection
- Telecommunication Equipment
- LED & Display Panel Shipping
- Fragile Goods Export Packaging
Frequently Asked Questions
- Q1: Why is IXPP foam suitable for electronics packaging?
A: IXPP foam combines a closed-cell rate over 98% for waterproof protection, excellent shock absorption for impact protection, and low odor with minimal VOC emissions for safe direct contact with sensitive electronic components. - Q2: How waterproof is this foam?
A: The independent closed-cell structure keeps water absorption as low as ≤2%, preventing moisture ingress and corrosion during transit, warehousing, and outdoor storage. - Q3: Can this foam be made into custom packaging inserts?
A: Yes. IXPP foam can be die-cut, thermoformed, and vacuum-formed into custom inserts, trays, corner protectors, and cushioning pads to match your product dimensions exactly. - Q4: Does the foam produce odor or outgas that could damage electronics?
A: No. IXPP foam is environmentally friendly and harmless with very low odor and minimal VOC emissions, making it safe for direct contact with electronic components. - Q5: What thicknesses, widths, and colors are available?
A: Standard thickness ranges from 1mm to 6mm for single layer (up to 100mm multilayer), roll widths from 500mm to 1500mm, and standard colors are flesh and black with full color customization supported.
