Lightweight High Density IXPP Foam Roll Waterproof 3-10mm For Shoe Insole
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 Square Meters |
|---|---|
| Price: | USD 0.8-3.5 / Square Meter |
| Packaging Details: | PE film wrapped rolls with protective end caps |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 200000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Structure: | Independent Closed Cell (closed-cell Rate >98%) |
|---|---|---|---|
| Density Range: | 100-200 Kg/m³ (high Density Grades) | Foam Ratio: | 5-15 Times (high Density, For Insole Support) |
| Thickness: | 3-10mm Sheets (1-6mm Single Layer, Up To 100mm Multilayer) | Roll Width: | 500-1500mm |
| Water Absorption: | ≤2% | Thermal Conductivity: | <0.036 W/m·K |
| Maximum Service Temperature: | 120°C | Compression Resistance: | High (firm Support, Low Compression Set) |
| Color: | Flesh Color, Black, White (color Customization Supported) | Application: | Shoe Insoles, Sports Shoes, Orthopedic Insoles, Work Boots |
| Highlight: | High Density IXPP Insole Foam,Waterproof Closed Cell Foam Roll,Lightweight Cushioning Shoe Material |
||
Product Description
Lightweight High Density IXPP Foam for Shoe Insole Applications
EKKOFLEX's IXPP (Irradiation Cross-Linked Polypropylene) foam is a lightweight yet high density waterproof foam material specially selected for shoe insole manufacturing. Produced through melt mixing and extrusion molding, green ion radiation cross-linking, and continuous high-temperature foaming, the material forms an independent closed-cell structure with a closed-cell rate of over 98%.
High density IXPP grades deliver firm, long-lasting arch and heel support while remaining lightweight for all-day wearing comfort. The waterproof closed cell structure keeps feet dry from moisture and sweat, while excellent resilience and shock absorption reduce foot fatigue - making IXPP foam an ideal insole material for sports shoes, casual footwear, work boots, and orthopedic insoles.
Key Features
- Lightweight & High Density - High density grades (100-200 kg/m³) provide firm support with low weight, ideal for supportive and durable shoe insoles.
- Waterproof Closed Cell Structure - Closed-cell rate over 98% with water absorption as low as ≤2%, keeping feet dry and preventing odor caused by moisture retention.
- Superior Shock Absorption & Rebound - Excellent cushioning and resilience reduce impact on heels and joints, with lasting rebound that resists flattening.
- Low Odor & Skin Friendly - Environmentally friendly and harmless with minimal VOC emissions and low odor, safe for prolonged skin contact inside footwear.
- Thermal Comfort - Low thermal conductivity provides insulation, keeping feet comfortable in both cold and warm conditions.
- Easy Processing - Can be die-cut, thermoformed, and skived into precise insole shapes, arch supports, and heel pads.
- Certified Quality - ISO 9001:2015, RoHS, and REACH certified, meeting international compliance standards.
Product Photos

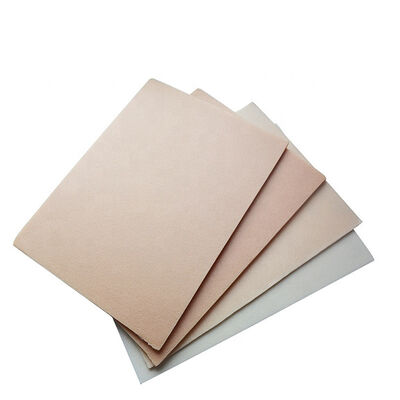

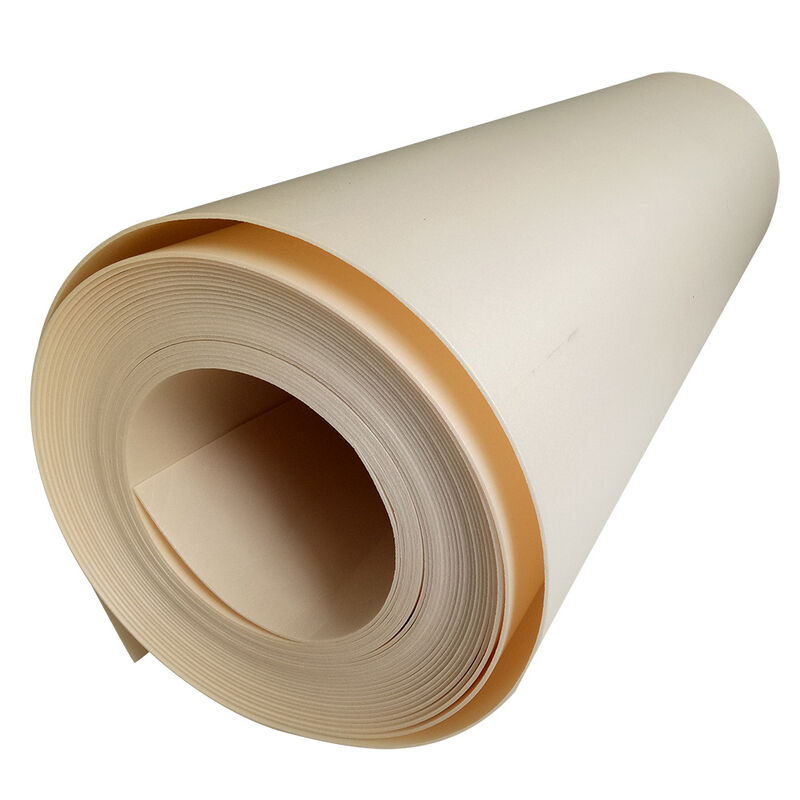

EKKOFLEX IXPP foam product photos: closed cell foam sheet and roll forms with fine surface quality, suitable for shoe insole and footwear applications.
 | | |
Technical Specifications
General Specifications
| Item | Specification |
| Foam Ratio | 5-30 Times (high density grades 5-15 times recommended for insoles) |
| Thickness | 1-6mm (single layer), up to 100mm (multilayer max) |
| Width | 500-1500mm |
| Color | Flesh color, black, white (color customization supported) |
IXPP Foam Technical Specification (by foam ratio)
| Test Item | Index | 5 Times | 10 Times | 15 Times | 18 Times | 20 Times | 25 Times | 30 Times | Test Standard |
|---|---|---|---|---|---|---|---|---|---|
| Density (kg/m³) | - | 200±25 | 100±10 | 66±7 | 55±5 | 50±5 | 40±5 | 33.3±3 | GB/T6343 |
| (Higher density = firmer support, ideal for insole applications) | |||||||||
| Tensile Strength (MPa) | Transverse | ≥2.5 | ≥1 | ≥0.9 | ≥0.7 | ≥0.6 | ≥0.4 | ≥0.2 | GB/T6344 |
| Longitudinal | ≥3.5 | ≥1.5 | ≥1.2 | ≥1 | ≥0.9 | ≥0.7 | ≥0.3 | ||
| Elongation (%) | Transverse | ≥260 | ≥240 | ≥200 | ≥190 | ≥180 | ≥160 | ≥100 | GB/T6344 |
| Longitudinal | ≥320 | ≥270 | ≥260 | ≥230 | ≥220 | ≥210 | ≥200 | ||
| Tearing Strength (kN/m) | Transverse | ≥15 | ≥8 | ≥8 | ≥7 | ≥6 | ≥4 | ≥2 | QB/T1130 |
| Longitudinal | ≥18 | ≥9 | ≥9 | ≥8 | ≥7 | ≥5 | ≥3 | ||
| Size Change Rate (%, 120°C, 1h) | Transverse | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | GB/T8811 |
| Longitudinal | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ≤-5 | ||
| Water Absorption (%) | - | ≤2 | ≤4 | ≤4 | ≤4 | ≤4 | ≤5 | ≤5 | GB/T1034 |
Insole Material Comparison
| Property | IXPP Foam | EVA Foam | XPE Foam | IXPE Foam | PU Foam |
|---|---|---|---|---|---|
| Support / Firmness | Excellent | Fair | Good | Good | Good |
| Waterproofness | Excellent | Poor | Good | Good | Fair |
| Resilience / Rebound | Excellent | Good | Good | Good | Good |
| Compression Set Resistance | Excellent | Fair | Good | Good | Fair |
| Odor / VOC Emission | Very Low | Low | Low | Low | Moderate |
| High-Temperature Stability | Excellent | Poor | Good | Good | Fair |
IXPP foam combines firm support, waterproofness, and lasting rebound, making it a premium insole material that outperforms conventional EVA and PE foams.
Applications
Sports Shoe Insoles | Running & Training Shoes | Casual & Walking Shoes | Work & Safety Boots | Orthopedic & Corrective Insoles | Children's Shoes | Heel Pads & Arch Supports | Slippers & Sandals
Frequently Asked Questions
Q1: Why use high density IXPP foam for shoe insoles?
A: High density IXPP grades (100-200 kg/m³) offer firm, stable support that resists compression and flattening over time, while the closed cell structure keeps the insole lightweight and waterproof.
Q2: Is this foam waterproof enough for sweaty feet?
A: Yes. The independent closed-cell structure keeps water absorption as low as ≤2%, preventing moisture retention and the odor and bacteria growth it causes.
Q3: Will the insole lose its cushioning over time?
A: No. Thanks to irradiation cross-linking, IXPP foam has excellent resilience and compression set resistance, maintaining support and cushioning over thousands of steps, outperforming EVA insoles.
Q4: Is IXPP foam safe for direct skin contact?
A: Yes. IXPP foam is environmentally friendly and harmless with low odor and minimal VOC emissions, making it safe for prolonged contact inside footwear.
Q5: Can insoles be die-cut from this foam?
A: Yes. The foam can be die-cut, thermoformed, and skived into precise insole shapes, arch supports, heel pads, and custom orthopedic components with clean edges.
Q6: What is the MOQ, delivery time, and certification?
A: The minimum order quantity is 3000 square meters. Delivery takes 7-10 working days for stock items and 15-25 days for production orders. The product is ISO 9001:2015, RoHS, and REACH certified.
