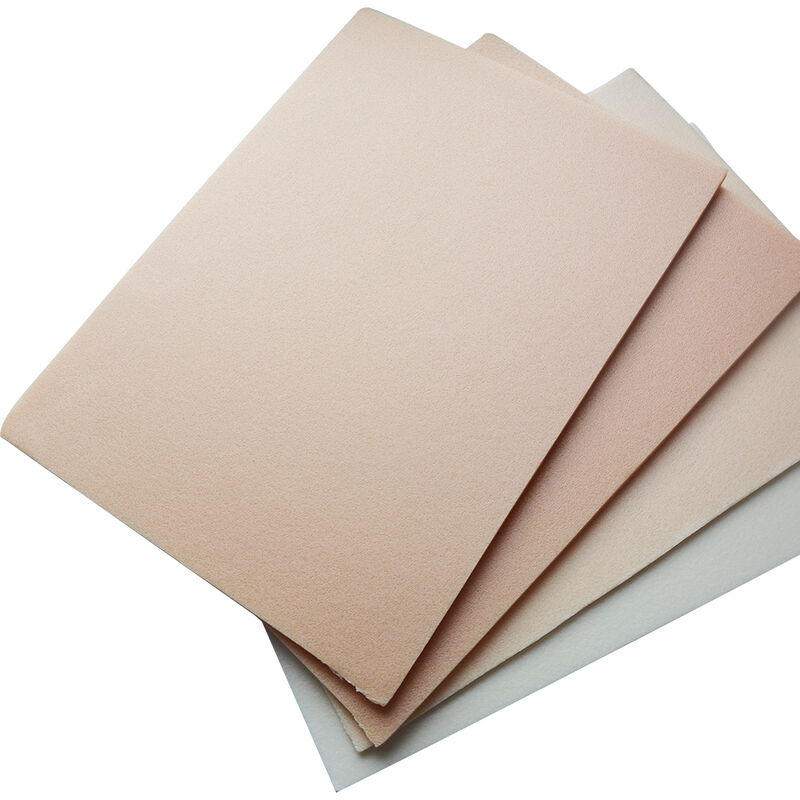

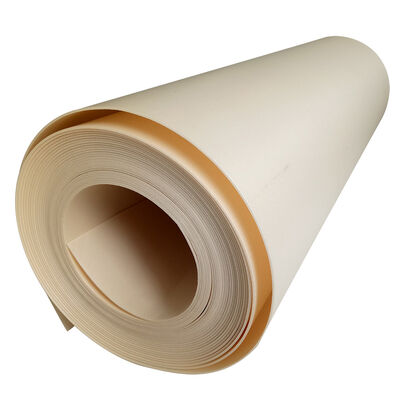

IXPP Foam Sheet Cross-Linked PP Foam 2mm-8mm Thickness EV Battery Compression Vibration Dampening Cushion
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, UL 94 V-0, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Square Meters |
|---|---|
| Price: | USD 1.5-6.0 / Square Meter |
| Packaging Details: | PE film wrapped sheets with protective interleaving |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 200000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Type: | Closed Cell |
|---|---|---|---|
| Thickness Range: | 2mm - 8mm | Density Range: | 33-200 Kg/m³ |
| Color: | White, Grey, Black, Custom Colors | Sheet Width: | 1000mm, 1200mm, 1500mm, Custom Size |
| Sheet Length: | Custom (Up To 200m Roll) | Temperature Resistance: | -40°C To +130°C (Peak: 150°C) |
| Compression Set: | < 5% (ASTM D3574, 50% Compression, 24h) | Vibration Dampening: | Excellent (Tan Delta > 0.15) |
| Application: | EV Battery Cell Compression Pad, Module Vibration Dampener, End-Plate Cushion | ||
| Highlight: | battery vibration dampening,cell compression pad,cross-linked PP sheet |
||
Product Description
IXPP Foam Sheet for EV Battery Compression & Vibration Dampening
Cross-Linked Polypropylene Foam — Superior Shock Absorption & Uniform Cell Compression for Battery Pack Longevity
Product Overview
EKKOFLEX's IXPP (Irradiation Cross-Linked Polypropylene) foam sheet is a high-performance closed cell foam engineered for EV battery pack compression and vibration dampening. With a compression set below 5% (ASTM D3574) and excellent vibration dampening (Tan Delta > 0.15), this cross-linked PP foam maintains consistent cell-to-cell pressure throughout the battery pack lifecycle.
The irradiation cross-linked molecular structure delivers superior mechanical recovery with over 95% compression rebound, ensuring long-term dimensional stability under constant compression loads. At 2mm-8mm thickness, this versatile foam sheet absorbs road-induced vibrations and mechanical shocks while providing uniform pressure distribution across battery cell surfaces.
Key Features
Less than 5% compression set per ASTM D3574 ensures consistent cell pressure retention over the battery lifecycle
Tan Delta greater than 0.15 effectively absorbs road vibration and mechanical shock to protect battery cells
Cross-linked structure rebounds to original thickness after thousands of compression cycles for long-term reliability
Maintains mechanical properties from -40°C to +130°C, suitable for global EV operating conditions
Non-absorbent structure prevents electrolyte and moisture ingress, protecting battery cell integrity
2mm-8mm thickness with tailored density to match your specific cell compression force requirements
Technical Specifications
| Property | Specification |
|---|---|
| Material | IXPP (Irradiation Cross-Linked Polypropylene Foam) |
| Foam Structure | Closed Cell |
| Thickness Range | 2mm / 3mm / 5mm / 6mm / 8mm (custom available) |
| Density Range | 33 - 200 kg/m³ |
| Sheet Width | 1000mm / 1200mm / 1500mm (custom available) |
| Sheet Length | Custom (Up to 200m per Roll) |
| Temperature Resistance | -40°C to +130°C (Peak: 150°C) |
| Compression Set | < 5% (ASTM D3574, 50% Compression, 24h) |
| Compression Recovery | > 95% (After Repeated Compression Cycles) |
| Vibration Dampening | Excellent (Tan Delta > 0.15) |
| Color | White, Grey, Black, Custom Colors |
| Certification | ISO 9001:2015, UL 94 V-0, RoHS, REACH |
Applications
Why Choose EKKOFLEX IXPP Foam for EV Battery Compression
Over 95 percent compression recovery after thousands of cycles, validated by independent laboratory testing per ASTM D3574
Specialized in irradiation cross-linked polyolefin foam manufacturing since 2010 with ISO 9001:2015 certified facility
Dedicated technical team supports cell compression force calculations and custom material selection for your battery design
Custom thickness, density, and compression profiles with sample delivery in 5-7 working days and full test data
Get Your Custom Quote in 24 Hours
Contact us now for a tailored quotation, compression test data, or free sample. Let us help you optimize your EV battery pack design with EKKOFLEX IXPP foam.
