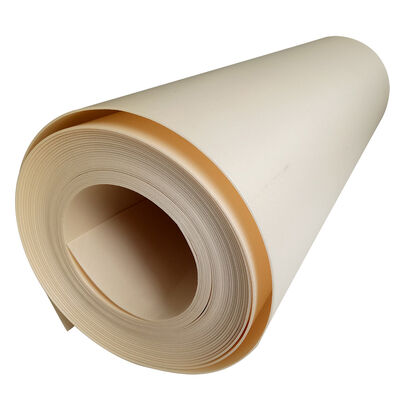

Flame Retardant Resistant Irradiation Cross-linked PP Foam For Wall Insulation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 Square Meters |
|---|---|
| Price: | USD 1.2-4.5 / Square Meter |
| Packaging Details: | PE film wrapped rolls with protective end caps |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 500000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Structure: | Closed Cell (Closed-Cell Rate >98%) |
|---|---|---|---|
| Flame Retardant Rating: | UL 94 V-0 | Thermal Conductivity: | ≤0.034 W/m·K |
| Expansion Ratio: | 5-30 Times | Temperature Resistance: | -40°C To +130°C (Continuous Service Up To 120°C) |
| Thickness Range: | 1-6mm Single Layer, Up To 100mm Multilayer | Density Range: | 33-200 Kg/m³ |
| Roll Width: | 500-1500mm | Roll Length: | Up To 200m Per Roll |
| Water Absorption: | ≤2% (GB/T1034) | VOC Emission: | Minimal, Low Odor |
| Color: | Flesh, Black, Custom Colors | Application: | Wall Insulation, Roof And Floor Insulation, HVAC Duct Lining, Prefabricated Panels |
| Highlight: | flame retardant wall insulation foam,fire-safe building insulation material,irradiation cross-linked polypropylene board |
||
Product Description

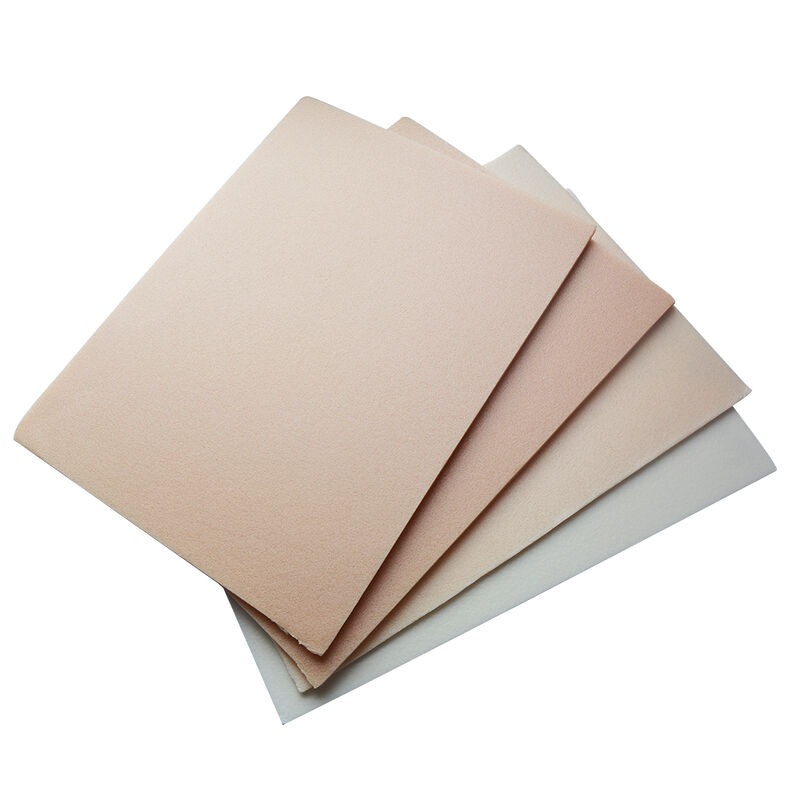

Flame Retardant IXPP Foam for Wall Insulation
Irradiation Cross-Linked Polypropylene Foam — Fire-Safe Thermal Insulation for Building Walls
Product Overview
EKKOFLEX's flame retardant IXPP (Irradiation Cross-Linked Polypropylene) foam is a closed cell thermal insulation material specifically engineered for wall insulation applications. Manufactured through advanced electron beam irradiation cross-linking technology, the foam achieves a closed-cell rate of over 98%, combining superior fire resistance, thermal insulation and dimensional stability in one lightweight, durable solution.
Rated UL 94 V-0 with self-extinguishing properties and low smoke generation, this cross-linked PP foam forms a reliable fire-safe thermal barrier for residential, commercial and industrial wall systems. With thermal conductivity as low as 0.034 W/m·K, low water absorption and minimal VOC emissions, it is an ideal alternative to traditional XPS and PU insulation boards.
Key Features
| No. | Feature | Benefit |
|---|---|---|
| 1 | Flame Retardant & Fire Safe | UL 94 V-0 rated, self-extinguishing with low smoke emission for enhanced building safety |
| 2 | Excellent Thermal Insulation | Thermal conductivity as low as 0.034 W/m·K reduces heating and cooling energy loss |
| 3 | High Closed-Cell Structure | Closed-cell rate over 98%, water absorption ≤2%, and low water vapor permeability prevent moisture and mold |
| 4 | High-Temperature Resistance | Dimensionally stable up to 130°C with low thermal shrinkage and continuous service up to 120°C |
| 5 | Lightweight & Easy Installation | Density starting at 33 kg/m³ simplifies handling, cutting and on-site installation |
| 6 | Environmentally Friendly | Low odor, minimal VOC emissions, and superior chemical resistance for long service life |
| 7 | Superior Processing Capability | Supports compounding, die-cutting, thermoforming, vacuum-forming, lamination and adhesive backing |
Technical Specifications
| Property | Specification |
|---|---|
| Material | IXPP (Irradiation Cross-Linked Polypropylene Foam) |
| Foam Structure | Closed Cell (Closed-Cell Rate >98%) |
| Flame Retardant Rating | UL 94 V-0 |
| Thermal Conductivity | ≤0.034 W/m·K |
| Expansion Ratio | 5 - 30 Times |
| Thickness | 1-6mm single layer; up to 100mm multilayer (custom available) |
| Density Range | 33 - 200 kg/m³ |
| Roll Width | 500 - 1500mm |
| Roll Length | Up to 200m per roll |
| Temperature Resistance | -40°C to +130°C (continuous service up to 120°C) |
| Water Absorption | ≤2% (GB/T1034) |
| Size Change Rate | ≤5% (120°C, 1h, GB/T8811) |
| Tensile Strength | ≥0.2 - 3.5 MPa (by density, GB/T6344) |
| Color | Flesh, Black, Custom Colors |
| Certification | ISO 9001:2015, RoHS, REACH |
Applications
Residential Wall Insulation Commercial Building Thermal Barrier Roof and Floor Insulation HVAC Duct Insulation Cold Storage Wall Panels Prefabricated Building Panels Acoustic Wall Padding
Frequently Asked Questions
| Question | Answer |
|---|---|
| What is IXPP foam? | IXPP (Irradiation Cross-Linked Polypropylene) foam is a closed-cell foam formed by treating polypropylene with electron beam irradiation. This cross-linking process delivers a closed-cell rate over 98%, excellent thermal insulation, and superior mechanical properties. |
| What is the flame retardant rating of this foam? | The foam is rated UL 94 V-0, self-extinguishing with low smoke generation, meeting strict building fire safety requirements for residential and commercial projects. |
| What specifications can be customized? | Thickness from 1-6mm single layer up to 100mm multilayer, width from 500-1500mm, density from 33-200 kg/m³, and custom colors. Die-cutting, lamination, thermoforming and adhesive backing are also available. |
| How does it perform as wall insulation? | With thermal conductivity as low as 0.034 W/m·K, water absorption ≤2% and stable dimensions at high temperature, it provides long-term energy-saving insulation that is moisture and chemical resistant. |
| What are the MOQ and delivery time? | The minimum order quantity is 500 square meters. Stock orders ship within 7-10 working days; production orders take 15-25 days. T/T, L/C and PayPal are accepted. |
Why Choose EKKOFLEX IXPP Foam
| 15+ Years Manufacturing Experience | Specialized in cross-linked polyolefin foam production since 2010 |
| ISO Certified Factory | ISO 9001:2015 quality management system with in-house testing laboratory |
| Custom Formulation Available | Tailored density, thickness, color, and flame retardant grade to meet project specifications |
| Fast Global Shipping | Reliable logistics network covering North America, Europe, Southeast Asia, and Middle East |
