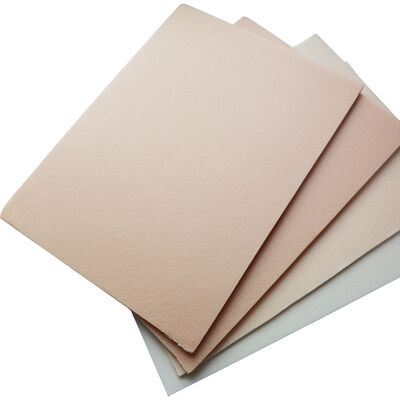

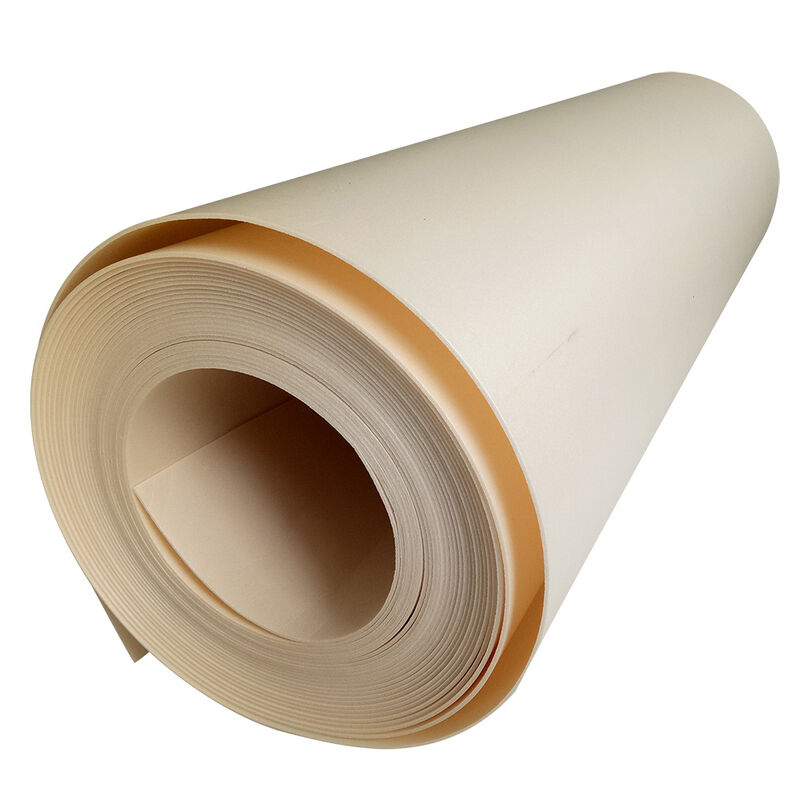

Lightweight Irradiation Cross-linked PP Foam IXPP Foam Roll For Helmet Liner
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 Square Meters |
|---|---|
| Price: | USD 1.2-4.5 / Square Meter |
| Packaging Details: | PE film wrapped rolls with protective end caps |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 500000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Structure: | Closed Cell (Closed-Cell Rate >98%) |
|---|---|---|---|
| Density Range: | 33-200 Kg/m³ | Thickness Range: | 1-6mm Single Layer, Up To 100mm Multilayer |
| Expansion Ratio: | 5-30 Times | Impact Absorption: | Excellent Energy Absorption With Low Rebound For Impact Protection |
| Temperature Resistance: | -40°C To +130°C (Continuous Service Up To 120°C) | Tensile Strength: | ≥0.2-3.5 MPa (GB/T6344) |
| Elongation: | ≥100-320% (GB/T6344) | Tear Strength: | ≥2-18 KN/m (QB/T1130) |
| Size Change Rate: | ≤5% (120°C, 1h, GB/T8811) | Water Absorption: | ≤2% (GB/T1034) |
| Roll Width: | 500-1500mm | Roll Length: | Up To 200m Per Roll |
| Color: | Natural/Flesh, Black, Custom Colors | Processing: | Cutting, Slicing, Lamination, Die Cutting, Punching, Thermoforming, Vacuum Forming, Adhesive Backing |
| Application: | Helmet Liner, Sports Protection Padding, Safety Helmet Cushioning, Automotive Headliner Padding | Certification: | ISO 9001:2015, RoHS, REACH |
| Highlight: | lightweight helmet liner foam,impact absorbing IXPP foam roll,thermoformable cross-linked PP foam |
||
Product Description
Lightweight IXPP Foam Roll for Helmet Liner
Irradiation Cross-Linked Polypropylene Foam — Impact-Absorbing Helmet Liner Material
Product Overview
EKKOFLEX's lightweight IXPP (Irradiation Cross-Linked Polypropylene) foam roll is a closed cell foam material specifically engineered for helmet liner applications. Produced from polypropylene through extrusion, electron beam irradiation cross-linking and foaming, the material achieves a fine closed-cell structure with a closed-cell rate over 98%, delivering outstanding impact absorption, thermal insulation and moisture resistance while keeping the liner lightweight and easy to process.
With density starting at just 33 kg/m³, this IXPP foam roll significantly reduces helmet weight while providing reliable energy absorption for impact protection. Compared with common PE foams, it offers better heat resistance, lower odor, good dimensional stability and strong mechanical performance. Its excellent thermoforming capability allows precise molding into helmet liner shapes, and its closed cell structure resists moisture from sweat, keeping the liner durable and hygienic over long-term use.
Key Features
| NO. | Feature | Benefit |
|---|---|---|
| 1 | Lightweight | Density starting at 33 kg/m³ reduces helmet weight for all-day wearing comfort |
| 2 | High Impact Absorption | Excellent resilience, cushioning and energy absorption with low rebound protects the head from impact forces |
| 3 | Thermoformable | Good thermal weldability and processing performance; thermoformed, vacuum-formed or die-cut into precise helmet liner shapes |
| 4 | High Closed-Cell Structure | Closed-cell rate over 98%, moisture and sweat resistant with low water vapor permeability for durable, hygienic liners |
| 5 | High-Temperature Resistance | Dimensional stability tested at 120°C for 1 hour with low thermal shrinkage; suitable for demanding applications |
| 6 | Skin-Friendly | Low odor, minimal VOC emissions, non-toxic and safe for direct skin contact in passenger and sports applications |
| 7 | Customizable | Custom density, thickness, color, lamination, punching and adhesive backing available |
Technical Specifications
| Property | Specification |
|---|---|
| Material | IXPP (Irradiation Cross-Linked Polypropylene Foam) |
| Foam Structure | Closed Cell (Closed-Cell Rate >98%) |
| Density Range | 33 - 200 kg/m³ |
| Thickness | 1-6mm single layer; up to 100mm multilayer laminated structure |
| Expansion Ratio | 5 - 30 Times |
| Roll Width | 500 - 1500mm |
| Roll Length | Up to 200m per roll |
| Temperature Resistance | -40°C to +130°C (continuous service up to 120°C) |
| Tensile Strength | ≥0.2 - 3.5 MPa (GB/T6344) |
| Elongation | ≥100 - 320% (GB/T6344) |
| Tear Strength | ≥2 - 18 kN/m (QB/T1130) |
| Size Change Rate | ≤5% (120°C, 1h, GB/T8811) |
| Water Absorption | ≤2% (GB/T1034) |
| Color | Natural/Flesh, Black, Custom Colors |
| Certification | ISO 9001:2015, RoHS, REACH |
Custom Processing Capabilities
| Process | Description |
|---|---|
| Cutting & Slicing | Cut to length, width and sliced to required thickness per project specification |
| Lamination & Multilayer | Single-layer 1-6mm; multilayer laminated structures up to 100mm combining cushioning, insulation and functional surfaces |
| Die Cutting & Punching | Custom dies produce repeatable helmet pads, liners, spacers and cushioning layers for medium and high-volume production |
| Thermoforming & Vacuum Forming | Shaped helmet liner parts produced with correct grade and forming conditions |
| Adhesive Backing | Pressure-sensitive adhesive, films or fabrics laminated for installation-ready pads and liners |
Applications
Helmet Liners Safety Helmet Cushioning Sports Helmet Padding Bicycle Helmet Inserts Motorcycle Helmet Padding Protective Headgear Knee and Elbow Pads Automotive Headliner Padding Impact Protection Padding
Frequently Asked Questions
- What is IXPP foam and why is it used for helmet liners?
IXPP (Irradiation Cross-Linked Polypropylene) foam is a closed-cell foam formed by cross-linking polypropylene through electron beam irradiation, then foaming it into a lightweight structure. Its closed-cell rate over 98%, light weight, high resilience and energy absorption make it an ideal helmet liner material. - What is the difference between IXPP foam and IXPE foam?
IXPP is irradiation cross-linked polypropylene foam, while IXPE is irradiation cross-linked polyethylene foam. IXPP offers better high-temperature resistance, lower thermal shrinkage and stronger mechanical performance, making it preferred for helmet liners and automotive interiors. - Can the foam be thermoformed into helmet liner shapes?
Yes. The foam has good thermal weldability and processing performance, supporting thermoforming, vacuum forming, die cutting, punching and compression molding to produce precise helmet liner geometries. - Is the foam safe and comfortable for direct skin contact?
Yes. It has low odor, minimal VOC emissions and is non-toxic. The closed cell structure resists moisture and sweat, keeping the liner hygienic and durable over long-term use.
Why Choose EKKOFLEX IXPP Foam
| 15+ Years Manufacturing Experience | Specialized in cross-linked polyolefin foam production since 2010 |
| ISO Certified Factory | ISO 9001:2015 quality management system with in-house testing laboratory |
| Custom Formulation Available | Tailored density, thickness, color and performance properties to meet your specifications |
| Fast Global Shipping | Reliable logistics network covering North America, Europe, Southeast Asia, and Middle East |
